304 stainless steel square plate rectangular plate Household barbecue plate tray Kitchen steamed rice plate dumplings plate grilled fish plate
Aluminum Stampings
Stainless Steel Stampings
Metal Stampings
Automotive Stampings
Long Run, High Speed Stamping
Progressive Die Stampings
Single process Stamping
Compound Stamping
Deep drawing stamping
Manufacturing Tools for Stamping
There are several steps in producing metal stamping. The first step is designing and manufacturing the actual tool used to create the product.
Let’s take a look at how this initial tool is created: Stock Strip Layout & Design: A designer uses is used to design the strip and determine dimensions, tolerances, feed direction, scrap minimization and more.
Tool Steel and Die Set Machining: CNC ensures a higher level of precision and repeatability for even the most complex dies. Equipment like 5-axis CNC mills and wire EDM machines can cut through hardened tool steels with extremely tight tolerances.
Secondary Processing: Heat treating is applied to metal parts to enhance their strength and make them more durable for their application. Grinding is used to finish parts requiring high surface quality and dimension accuracy.
Wire EDM: Wire electrical discharge machining shapes metal materials with an electrically-charged strand of brass wire. Wire EDM can cut the most intricate shapes, including small angles and contours.
| General Gapabilities | Production stamping,punching ,stamping die,tooling,Prototype |
| Production Method | Progressive Die,Single Hit |
| Stamping Features | Blanking,Deep Draw,Countersunk,Coining |
| Press Range | 35 tons to 160 tons |
| Part Length | Up to 500mm |
| Part Width | Up to 400mm |
| Part Material Thickness | 0.1mm in to 5mm |
| Production Volume | High Volume,Large Run,Long Run |
| Additional Services Provided | Assembly,Washing,Deburring,Coating,Heat Treating |
| Industry Focus | Transportation,Agricultural,Consumer Products,Bracket Markets,Service Industries |
| File Formats | AutoCAD (dwg,dxf),ProE,UG,iges,Initial Graphics Exchange Specification,pdf,JPG |
FAQ
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.002mm.
Q: Can you make all the dimensions are according to our design/samples?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q: What’s your advantage compare with other supplier’s on the market?
---- We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.So the metal stamping parts is better that other factories.
---- All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
|
|

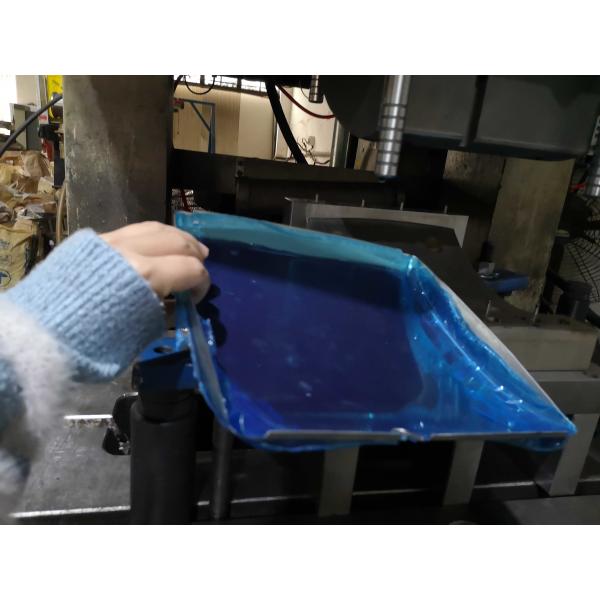

304 stainless steel square plate rectangular plate Household barbecue plate tray Kitchen steamed rice plate dumplings plate grilled fish plate Images
|
